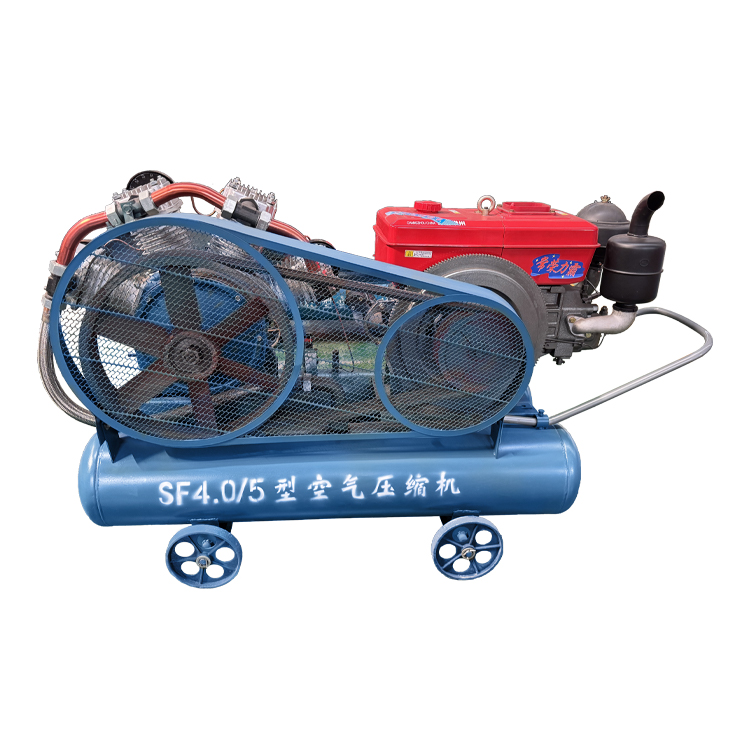

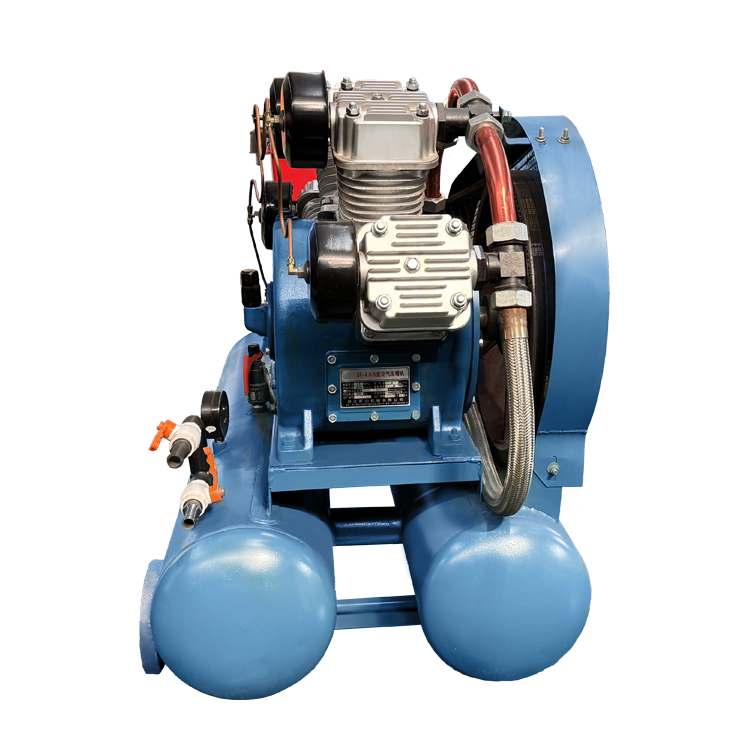

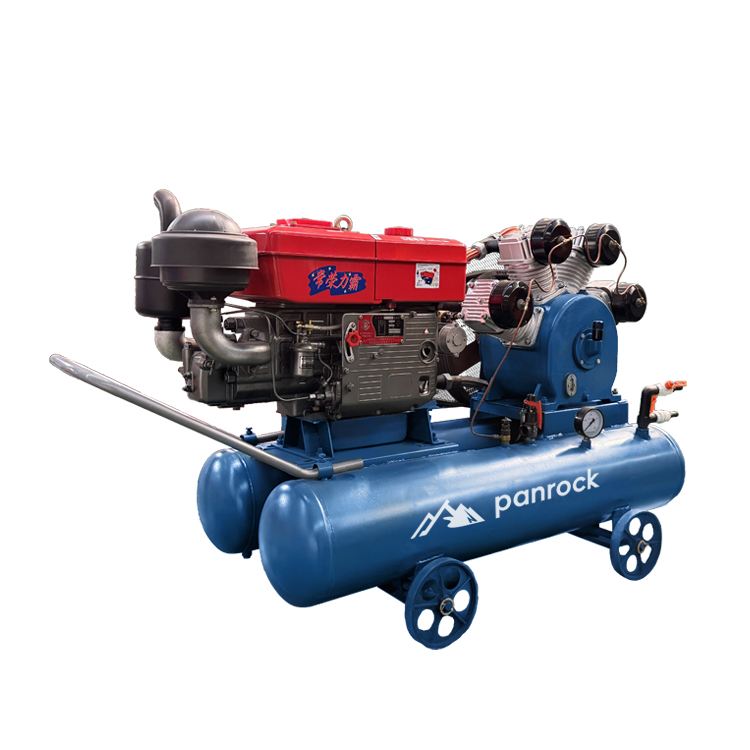

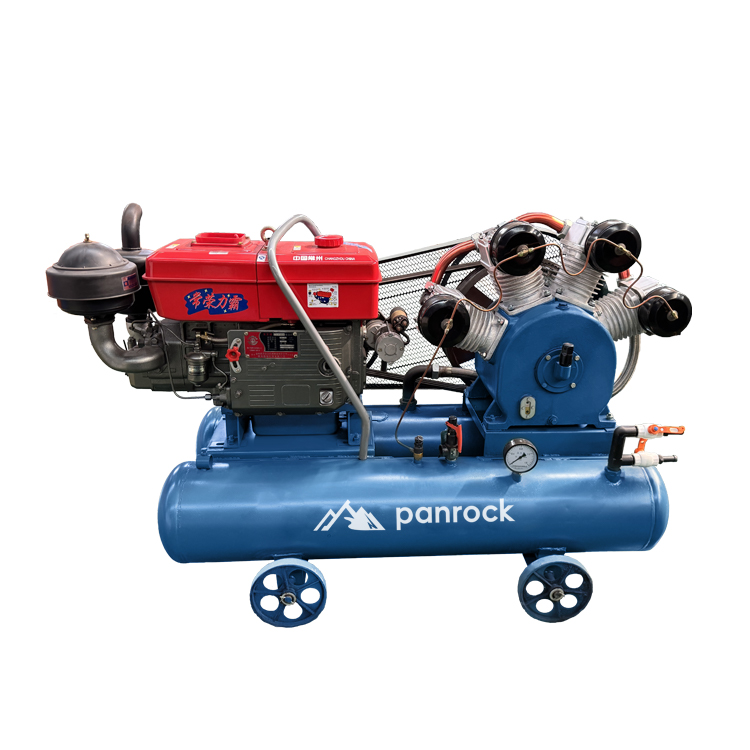

Blue SF-4.0/5 Diesel Piston Air Compressor

1.Located in the manufacturing base for mining equipment in China.Covering an area of over 60 acres with standard factory buildings of 30,000 square meters.
2.Professional rock drill and air compressor manufacturing and selling.Includes over eighty varieties across eight major series, including mining series.
3.Air compressors, piston machine series, excavation machinery series, and rock drilling series, with products widely used in mining, highway and bridge construction, medical pharmaceutical, and textile industries.
  • Detailed Description
Voltage 380 V, 220 V, 110 V Power source Diesel
Working pressure 5 bar Power 18.5kw
Type Piston Gas type Air
Cooling Method Air Cooled Mute Yes
Core components Motor, Pump, Engine Warranty 1 Year
Weight (KG) 655 Place of origin Zhejiang, China
Model number fs4.0-5 Product name Mine Air Compressor
Dimension(l*w*h) 1960*860*1300mm Air capacity 4.0m³/min
Usage Mining and drilling Equipped with diesel/electric power S1125*18.5kw
Rated speed 1070r/min Cylinder(dia*qty) 4*120

详情页_02

详情页_12

详情页_14
