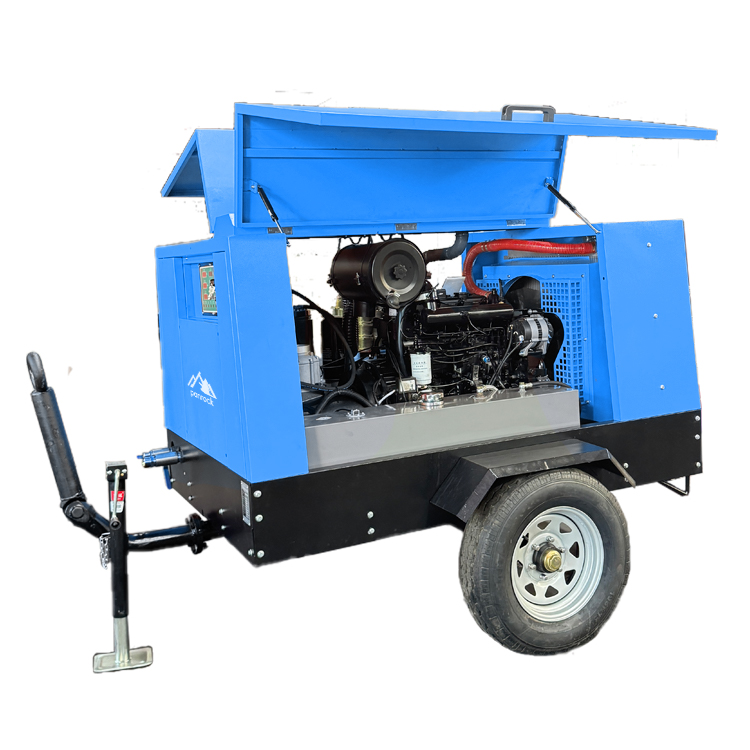

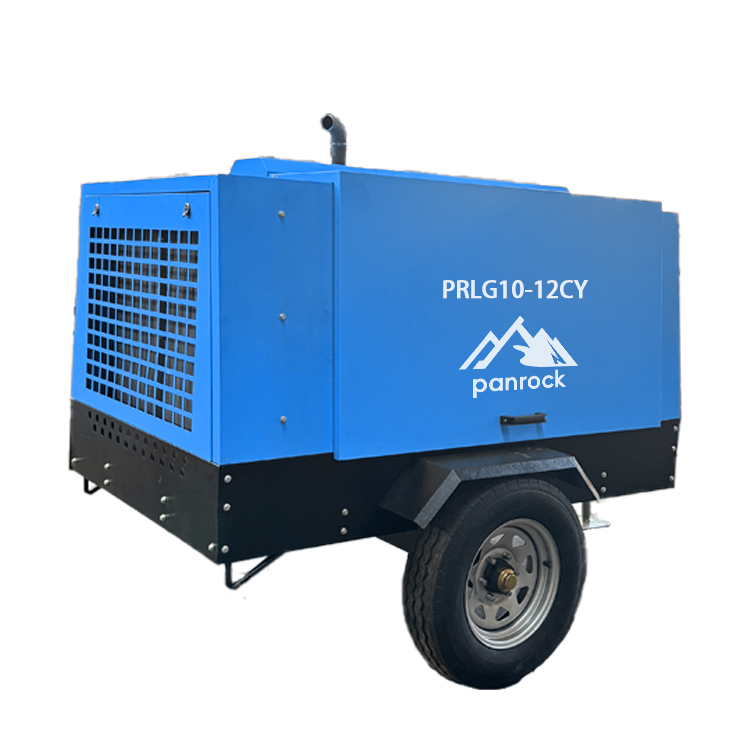

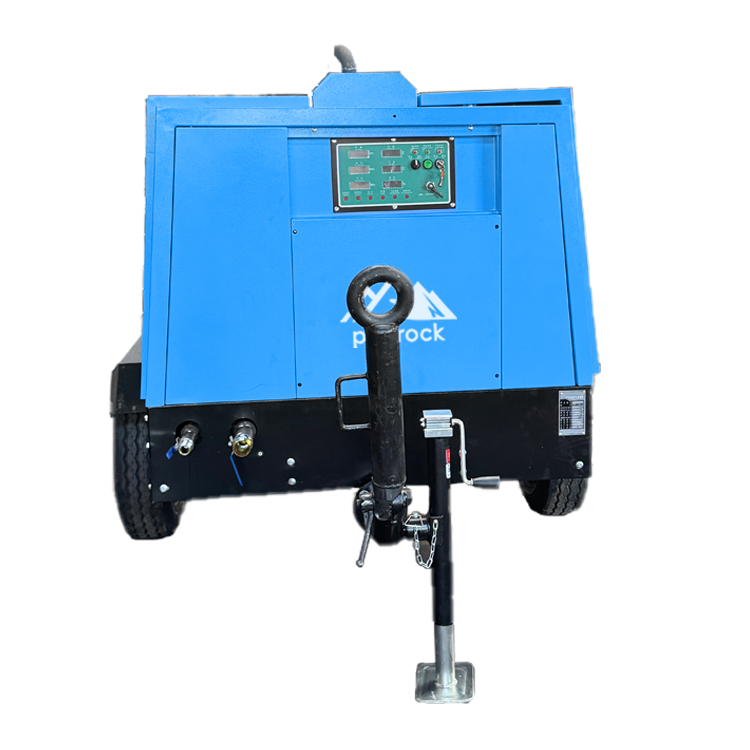

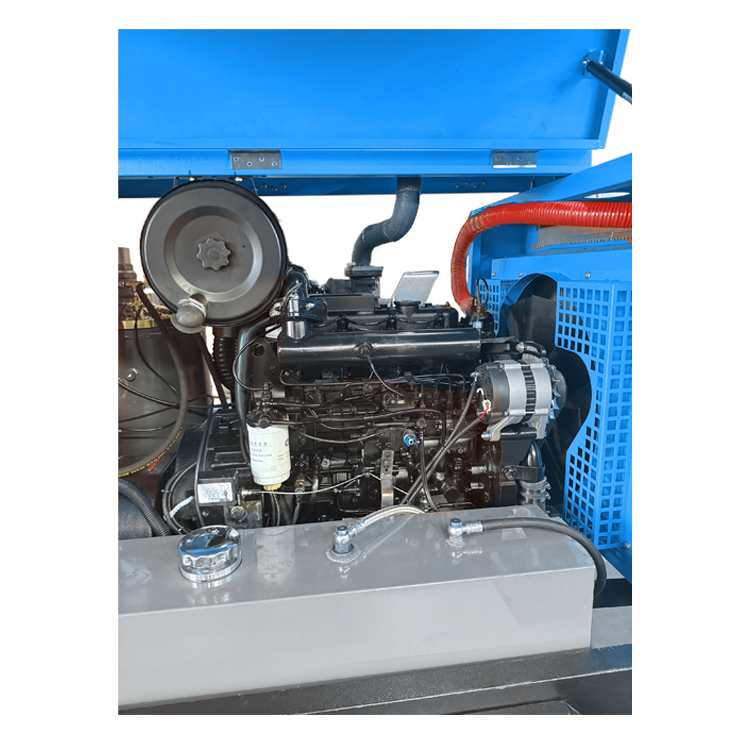

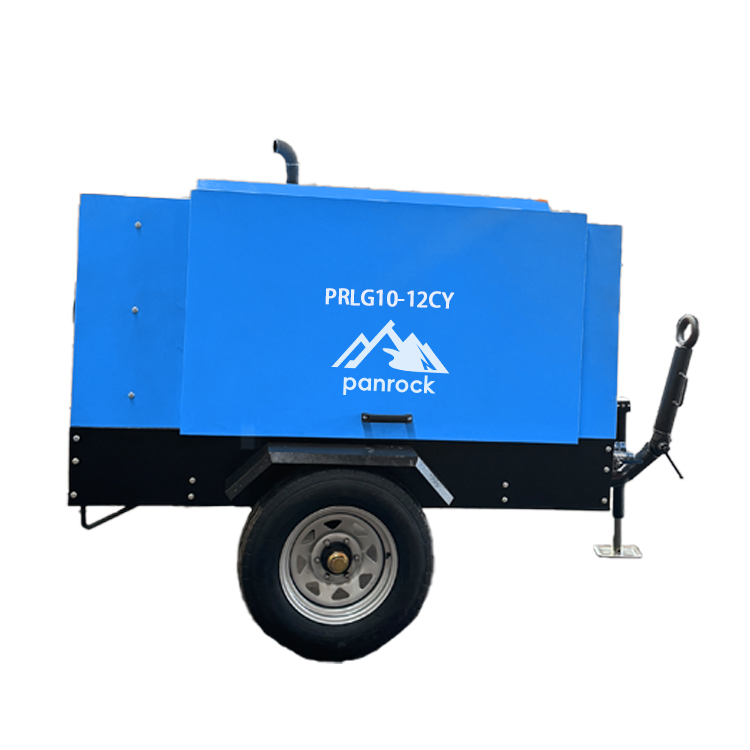

PRLG10-12CY Portable Air-compressor

1.Located in the manufacturing base for mining equipment in China.Covering an area of over 60 acres with standard factory buildings of 30,000 square meters.
2.Professional rock drill and air compressor manufacturing and selling.Includes over eighty varieties across eight major series, including mining series.
3.Air compressors, piston machine series, excavation machinery series, and rock drilling series, with products widely used in mining, highway and bridge construction, medical pharmaceutical, and textile industries.
  • Detailed Description
Voltage 380 V, 220 V, 110 V Power source Diesel
Working pressure 12 bar Power 78 kw
Type Oil-injected single-stage screw compression Gas type Air
Cooling Method Air Cooled Mute Yes
Core components Motor, Pump, Engine Warranty 1 Year
Weight (KG) 1200 Place of origin Zhejiang, China
Model number
PRLG10-12CY
Air capacity 10 m³/min
Dimension(l*w*h) 2450x1740x1880mm Rated speed/full load/No load 2400/2100/1350 rpm
Oil-gas filling capacity 23 L Compressor Head Model YNE178RB
Start the battery 24 V Cooler capacity 72 L
Outlet valve G3/4*1 G1*1 Engine manufacturer yuchai

详情页_02

详情页_07
