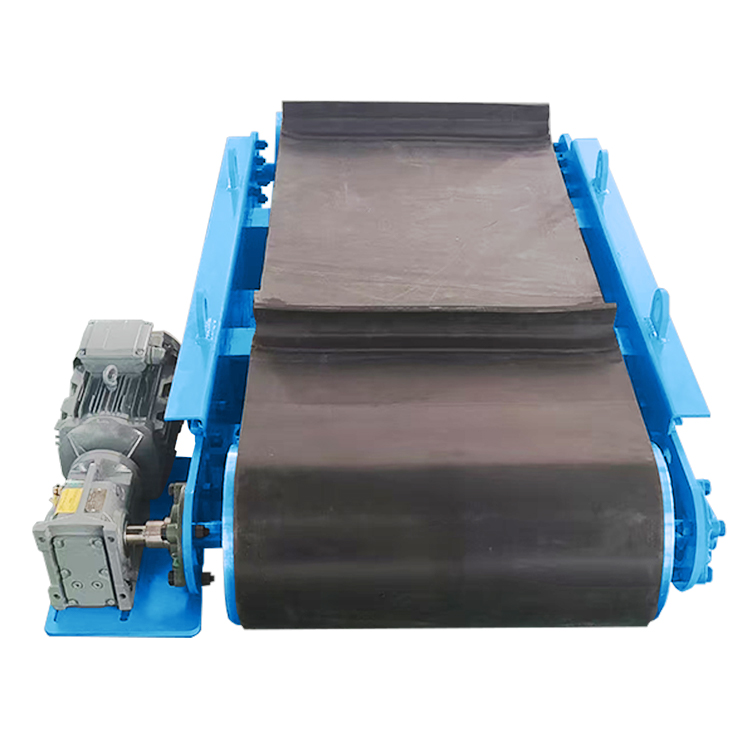

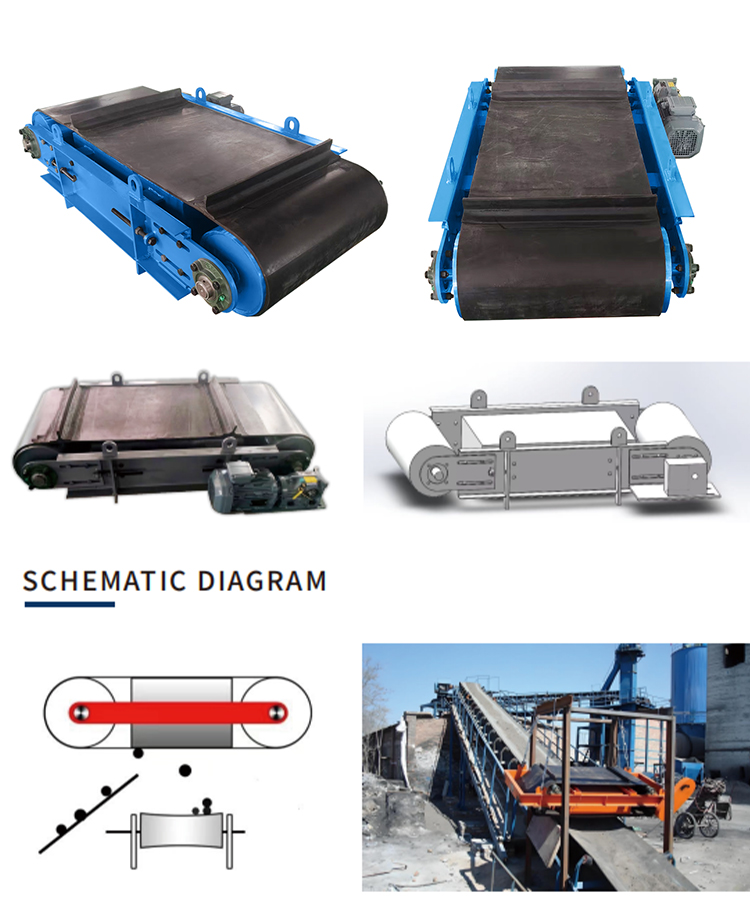

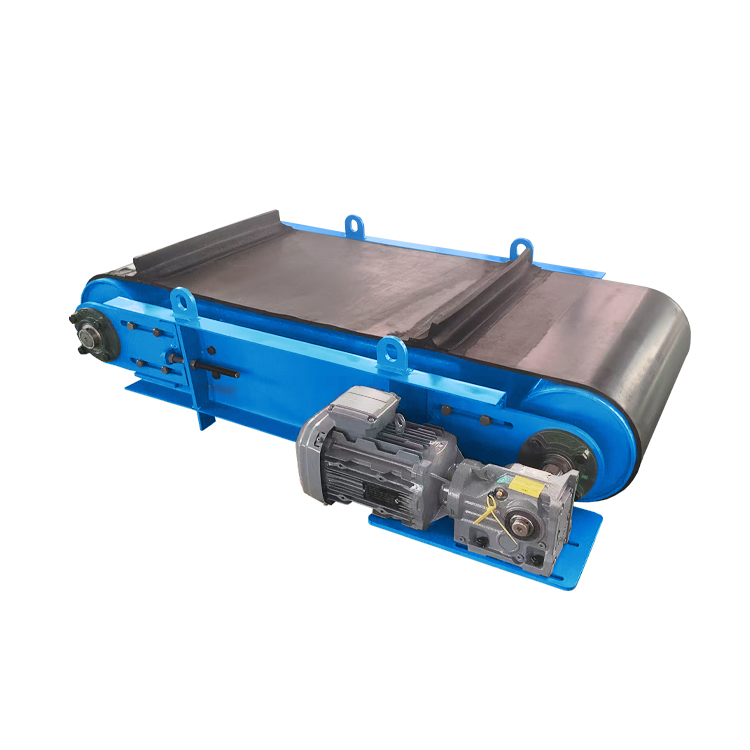

*The permanent magnet suspension separator is a high-efficiency automatic iron-discharging magnetic separation device. It is developed on the basis of the high-intensity permanent magnet magnetic separator, with additional components including a reducer, an iron-discharging belt, rollers, and a main frame.
|
Product Name
|
Self-discharging Permanent Magnet Separator
|
|
Product Dimensions
|
Standard Sizes+Customizable Sizes
|
|
Product Function
|
Adsorbs Ferromagnetic Metals
|
|
Magnetic Suction Distance
|
Effective adsorption range for ferromagnetic materials: 10-30 cm
|
|
Product Components
|
Reducer, Iron-discharging Belt, Rollers, Main Frame, High-intensity Permanent Magnet Separator
|
|
Scope of Application
|
Wood Chip Mills, Metallurgy, Mining, Papermaking, Waste Separation, Cement Plants, Sand Quarries, Power Plants, etc.
|

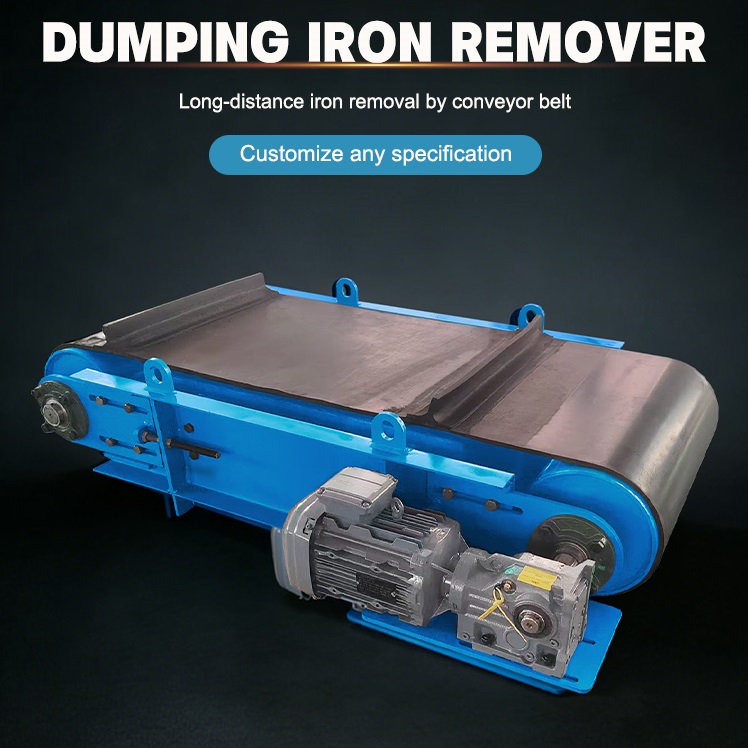

Dumping：
| Model | Applicable Beit width (mm) | Hanging Height (mm) | Driving Power (kw) | Overall Dimension(mm) | Weight (kg) | ||
| L | W | T | |||||
| RCYC(D)-6 | 600 | 300 | 2.2 | 1400 | 1050 | 330 | 560 |
| RCYC(D)-8 | 800 | 300 | 2.2 | 1600 | 1050 | 330 | 690 |
| RCYC(D)-10 | 1000 | 300 | 2.2 | 1800 | 1393 | 330 | 810 |
| RCYC(D)-12 | 1200 | 300 | 2.2 | 2000 | 1593 | 330 | 1050 |
| RCYC(D)-14 | 1400 | 300 | 2.2 | 2200 | 1793 | 330 | 1210 |
|
Belt width (mm)
|
Suspension height （h≤mm）
|
Overall Dimension(mm)
|
Weight (kg)
|
||
|
L
|
W
|
T
|
|||
|
500
|
250
|
500
|
300
|
200
|
85
|
|
600
|
250
|
600
|
400
|
200
|
128
|
|
800
|
300
|
800
|
600
|
300
|
420
|
|
1000
|
300
|
1000
|
600
|
300
|
860
|
|
1200
|
320
|
1200
|
600
|
300
|
1150
|
|
1400
|
350
|
1400
|
800
|
300
|
1780
|
