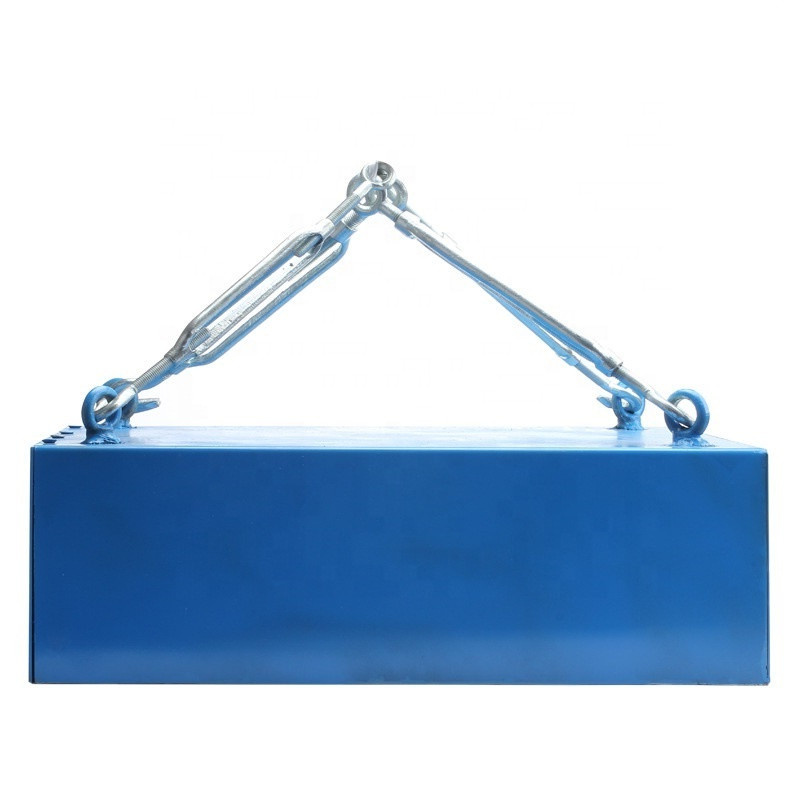

Widely used in the conveyer belts of environment protection, resource recycling and the paper industry. Permanent Suspended Plate-Type Magnets for Iron Removal are made of either Ferrite or NdFeb magnets. The magnetic surface is of Stainless Steel. Suspended plate Magnets are designed to effectively remove tramp metal. For instance remove magnetic material on the belt conveyer, vibration conveyor, electric-vibrating feeder and feeder groove, to protect the crusher from damage.
Standard Features and Benefits:
Applies computer simulation techniques, high magnetic force strength, large gradient and suction, High-performance materials, high magnetic energy product, good resistance to demagnetize.
1. Demagnetize less than 5% within 8 years.
2. Custom design: different dimensions and extra parts
3. Self-unloading ferromagnetic materials, smooth operation, running continuously without trouble for a long time.
4. There are a variety of magnetic field strengths to choose from. different magnetic action ranges, apply to different industries.
5. Durable stainless steel construction & Adopt unique welding
6. Long service life and Simple to install
7. Convenient to operate and reliable performance
8. Manual cleaning and no maintenance
9. User-friendly, easy to clean and assemble.
Specification:
Magnetic plates design of the magnet depends on the feed material, size, flow rate, concentration and feed depth. The design also depends on the flow passage dimensions, width and speed of your belt conveyor.

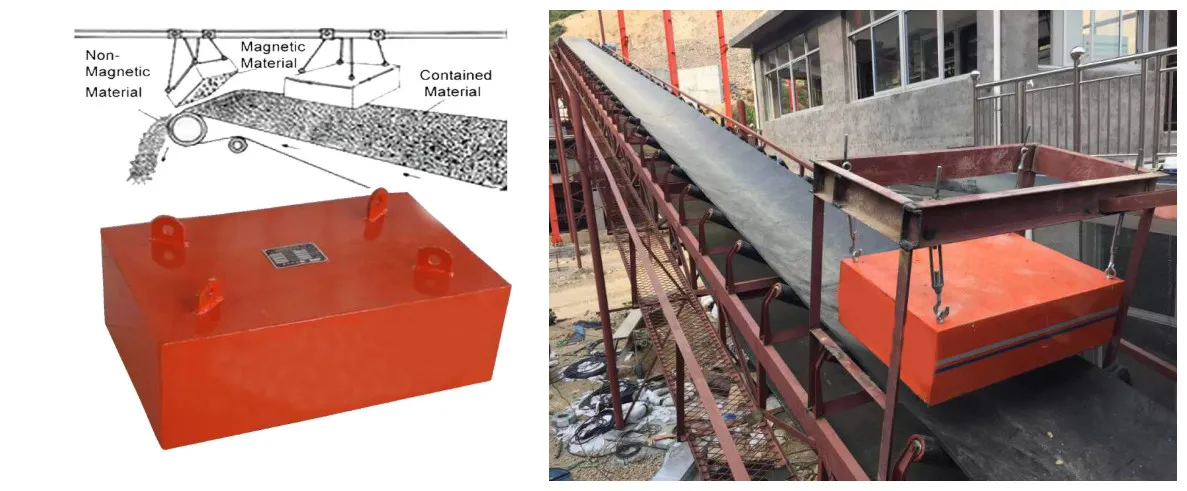

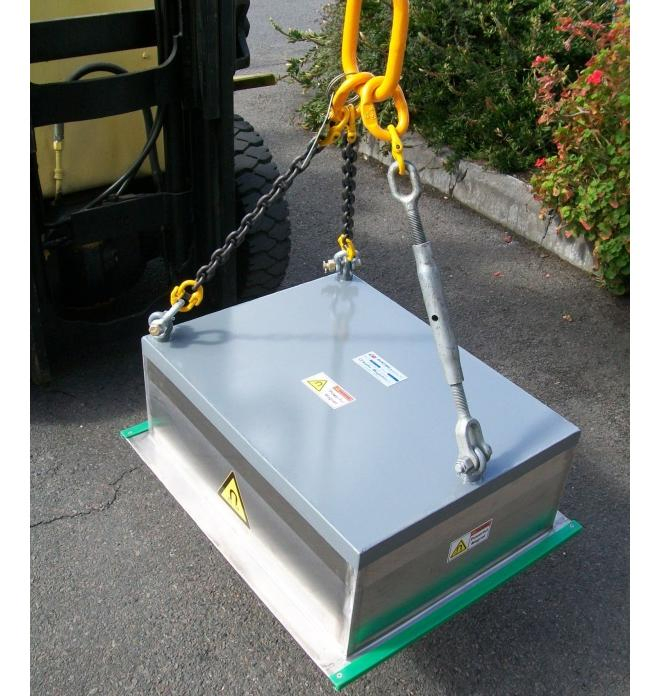

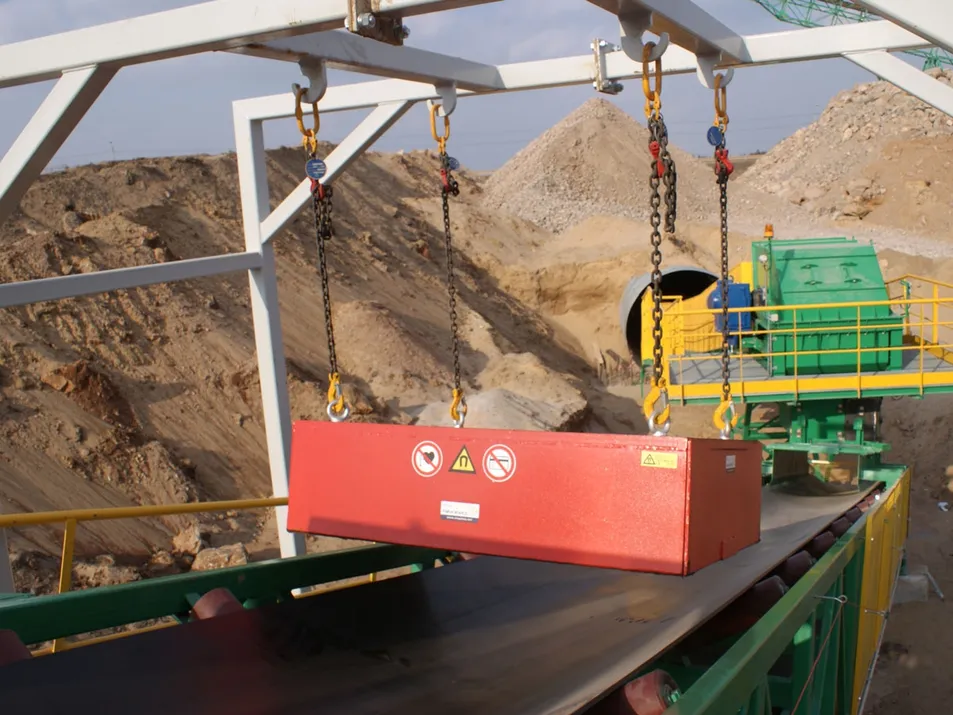

Installation method: Supplied with deep mounting tapped holes in the back of the plate or four eye bolts, these plate magnets can be rigidly mounted with threaded bolts or suspended above the conveyor belt or the head pulley by eye bolts using cable or chain systems.
Cleaning method: manually remove the collected tramp metal from the face of the magnet.
