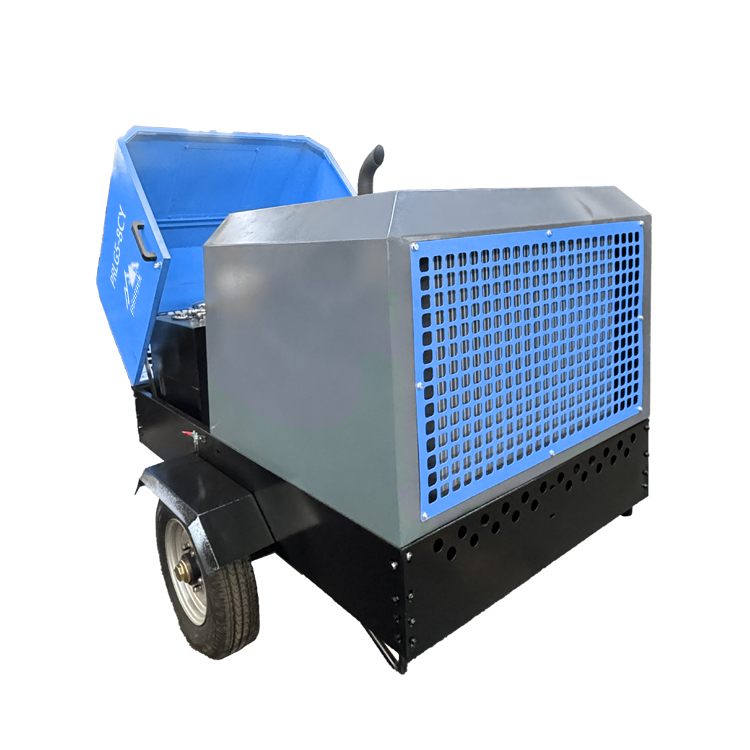

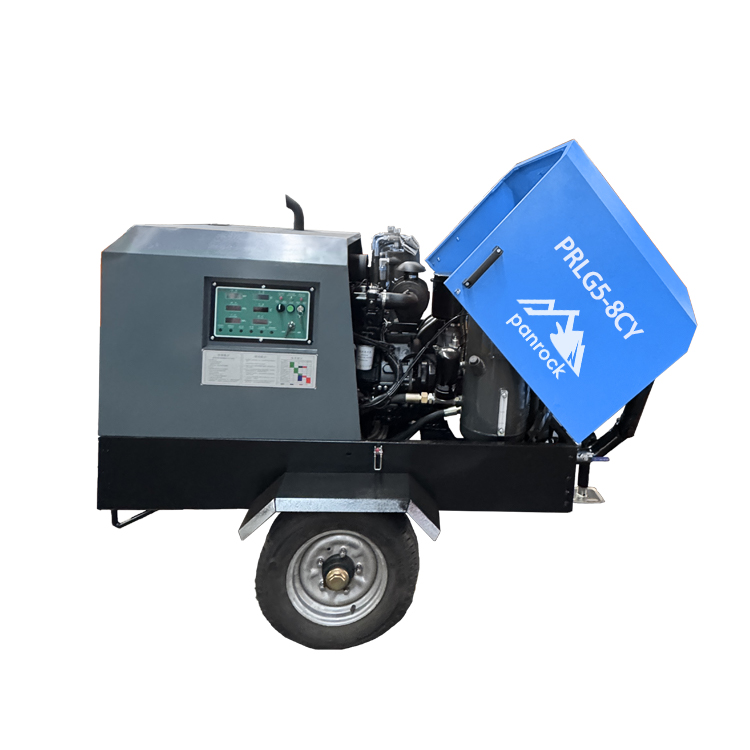

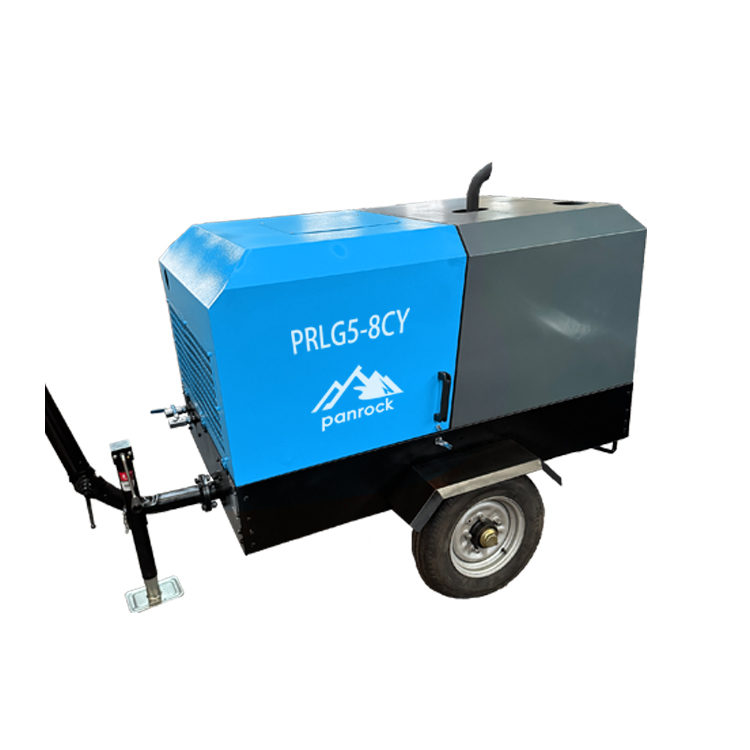

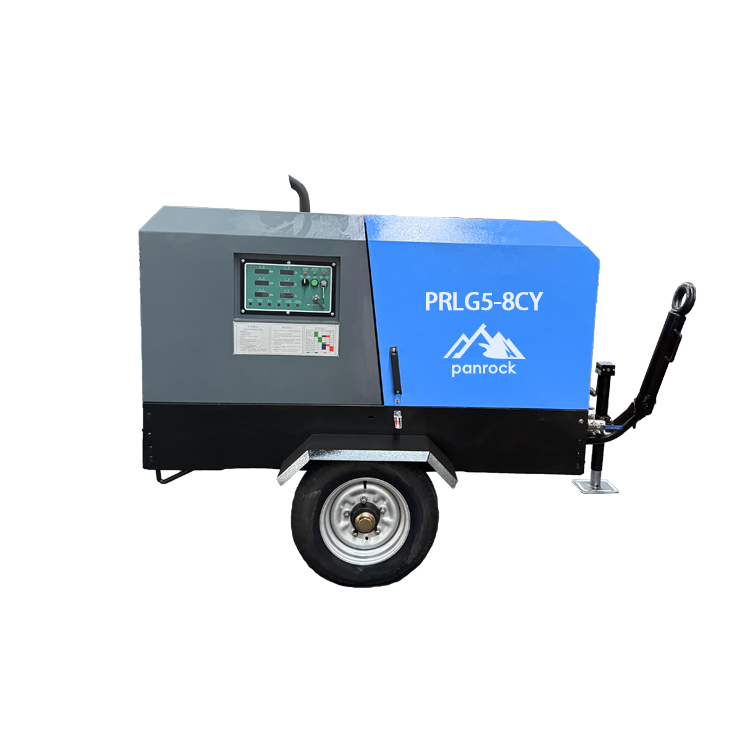

PRLG5-8CY Screw Air Compressor

1.Located in the manufacturing base for mining equipment in China.Covering an area of over 60 acres with standard factory buildings of 30,000 square meters.
2.Professional rock drill and air compressor manufacturing and selling.Includes over eighty varieties across eight major series, including mining series.
3.Air compressors, piston machine series, excavation machinery series, and rock drilling series, with products widely used in mining, highway and bridge construction, medical pharmaceutical, and textile industries.
  • Detailed Description
Voltage 380 V, 220 V, 110 V Power source Diesel
Working pressure 8 bar Power 41 kw
Type Screw Gas type Air
Cooling Method Air Cooled Mute Yes
Core components Motor, Pump, Engine Warranty 1 Year
Weight (KG) 800 Place of origin Zhejiang, China
Model number PRLG5-8CY Product name Screw type two-stage compression
Dimension(l*w*h) 2050x1250x1500mm Air capacity 5m³/min
Oil-gas filling capacity 23 L Rated speed/full load/No load 2400/2150/1400 rpm
Cooler capacity 72 L Outlet valve G1-G11/4
