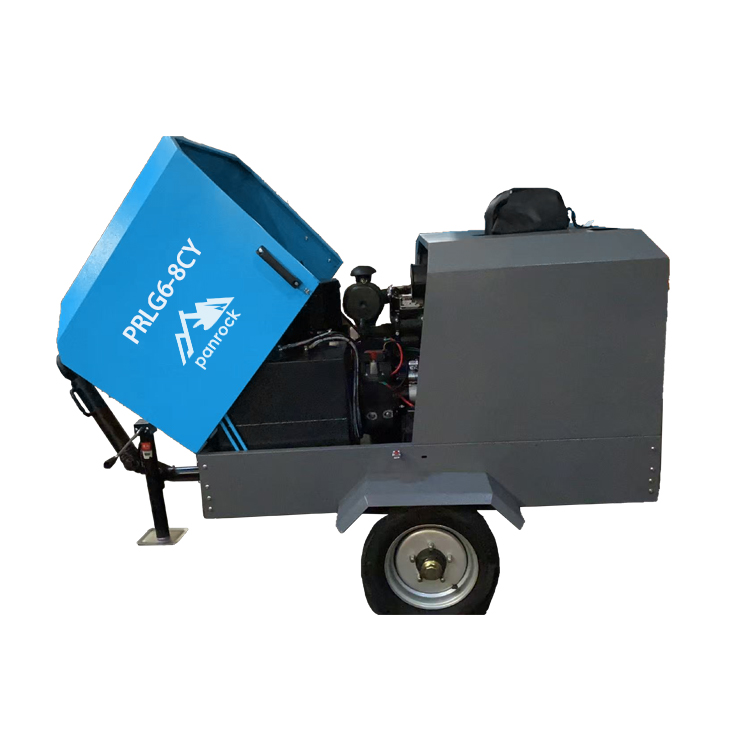

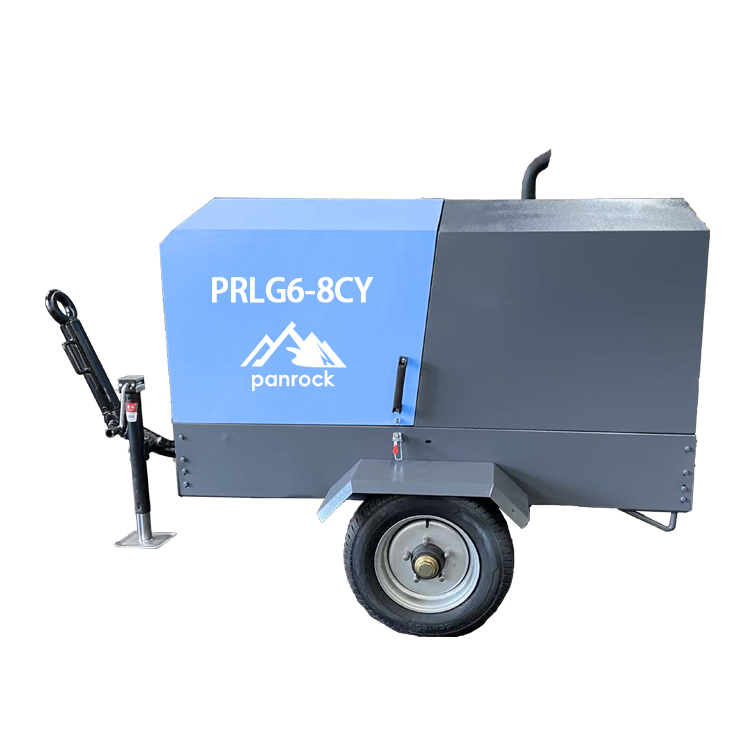

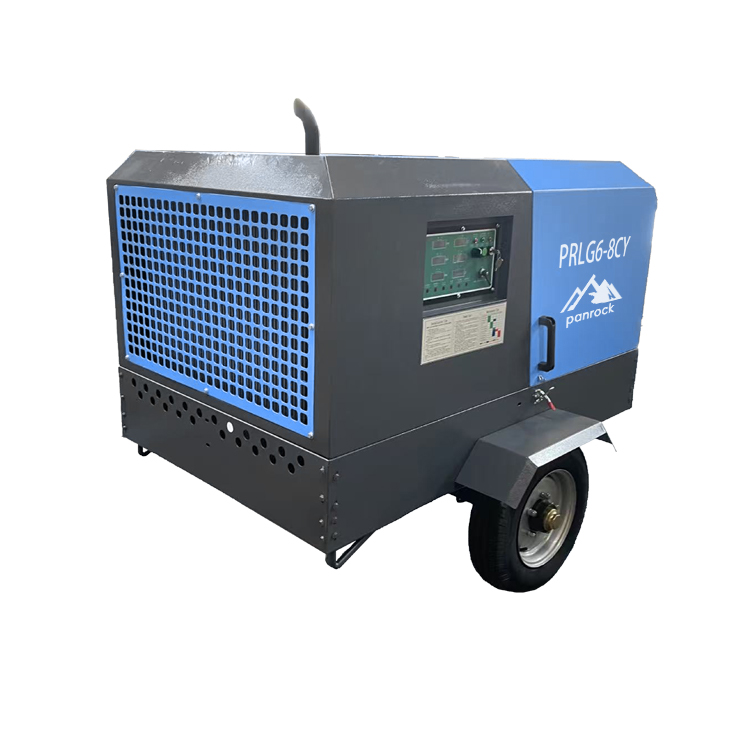

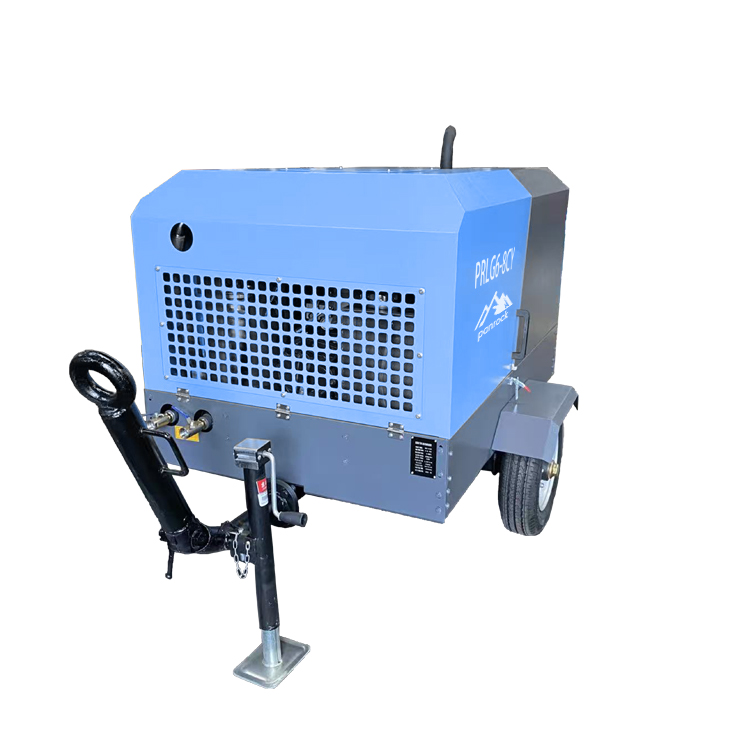

PRLG6-8CY Screw type two-stage compression

1.Located in the manufacturing base for mining equipment in China.Covering an area of over 60 acres with standard factory buildings of 30,000 square meters.
2.Professional rock drill and air compressor manufacturing and selling.Includes over eighty varieties across eight major series, including mining series.
3.Air compressors, piston machine series, excavation machinery series, and rock drilling series, with products widely used in mining, highway and bridge construction, medical pharmaceutical, and textile industries.
  • Detailed Description
Voltage 380 V, 220 V, 110 V Power source Diesel
Working pressure 8 bar Power 41 kw
Type Screw Gas type Air
Cooling Method Air Cooled Mute Yes
Core components Motor, Pump, Engine Warranty 1 Year
Weight (KG) 1000 Place of origin Zhejiang, China
Model number PRLG6-8CY Product name Screw type two-stage compression
Dimension(l*w*h) 2540x1460x1550mm Air capacity 6m³/min
Oil-gas filling capacity 50 L Rated speed/full load/No load 2650/2300/1450 rpm
Displacement 2.54 L Outlet valve G1''*1&G3/4''*2

详情页_02

详情页_08

详情页_12
